설명

가속기 연구소 전자석의 전류를 제어하여 빔의 단면적이나 위치를 제어하는 장치

구성도

제품종류

MPS50W
MPS100W
MPS1.5kW
MPS4.6kW

주요제품

4

50W MPS

Magnet Power Supply

Control
Local and Remote / CC Mode/ CV Mode
Communication Interface
RS-232 / EPICS IOC
Remote Control Connector
D-SUB / 9pin RJ45(EPICS IOC) / SFP / SFP+
Alphanumeric Display
Over Current / External Interlock / Low input Voltage
Web Interface
Wave Form / Wave Form Custom / Stability / EPICS / Oscilloscope / Firmware Update
Type
Bipolar
Short Term(30min)
< ±35ppm

Long Term (8hrs)
<± 70ppm
DC Output Isolation Resistance
> 1 Mohm
Standard
≥ 16bits
AC Input Voltage Range
90~264VAC
Dimension(WxHxD)(mm)
482.6 x 44(1U) x 475
DSP, FPGA 제어

3

100W MPS

Magnet Power Supply

Control
Local and Remote / CC Mode/ CV Mode
Communication Interface
RS-232 / EPICS IOC
Remote Control Connector
D-SUB / 9pin RJ45(EPICS IOC) / SFP / SFP+
Alphanumeric Display
Over Current / External Interlock / Low input Voltage
Web Interface
Wave Form / Wave Form Custom / Stability / EPICS / Oscilloscope / Firmware Update
Type
Bipolar
Short Term(30min)
< ±35ppm

Long Term (8hrs)
<± 70ppm
DC Output Isolation Resistance
> 1 Mohm
Standard
≥ 16bits
AC Input Voltage Range
90~264VAC
Dimension(WxHxD)(mm)
482.6 x 44(1U) x 475
DSP, FPGA 제어

2

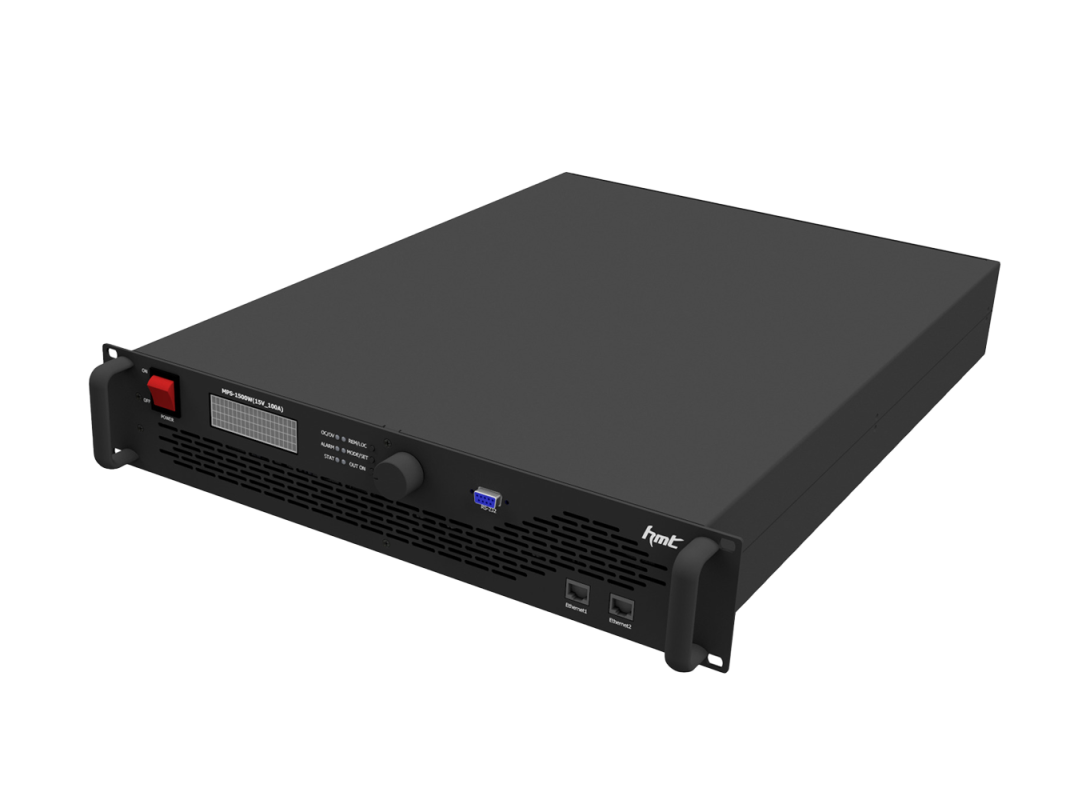

1.5kW MPS

Magnet Power Supply

Control
Local and Remote / CC Mode/ CV Mode
Communication Interface
RS-232 / EPICS IOC
Remote Control Connector
D-SUB / 9pin RJ45(EPICS IOC) / SFP / SFP+
Alphanumeric Display
Over Temperature / Over Current / External Interlock / Low input Voltage
Web Interface
Wave Form / Wave Form Custom Stability / EPICS Oscilloscope / Firmware Update
Type
Unipolar
Short Term(30min)
<± 10ppm

Long Term (8hrs)
<± 20ppm
DC Output Isolation Resistance
> 1 Mohm
Standard
≥ 16bits
AC Input Voltage Range
90~264VAC
Dimension(WxHxD)(mm)
482.6 x 88.1(2U) x 630
DSP, FPGA 제어

1

4.6kW MPS

Magnet Power Supply

Control
Local and Remote / CC Mode/ CV Mode
Communication Interface
RS-232 / EPICS IOC
Remote Control Connector
D-SUB / 9pin RJ45(EPICS IOC) / SFP / SFP+
Alphanumeric Display
Over Temperature / Over Current / External Interlock / Low input Voltage
Web Interface
Wave Form / Wave Form Custom Stability / EPICS Oscilloscope / Firmware Update
Type
Unipolar
Short Term(30min)
<± 10ppm

Long Term (8hrs)
<± 20ppm
DC Output Isolation Resistance
> 1 Mohm
Standard
≥ 16bits
AC Input Voltage Range
90~264VAC
Dimension(WxHxD)(mm)
482.6 x 177(4U) x 650
DSP, FPGA 제어
